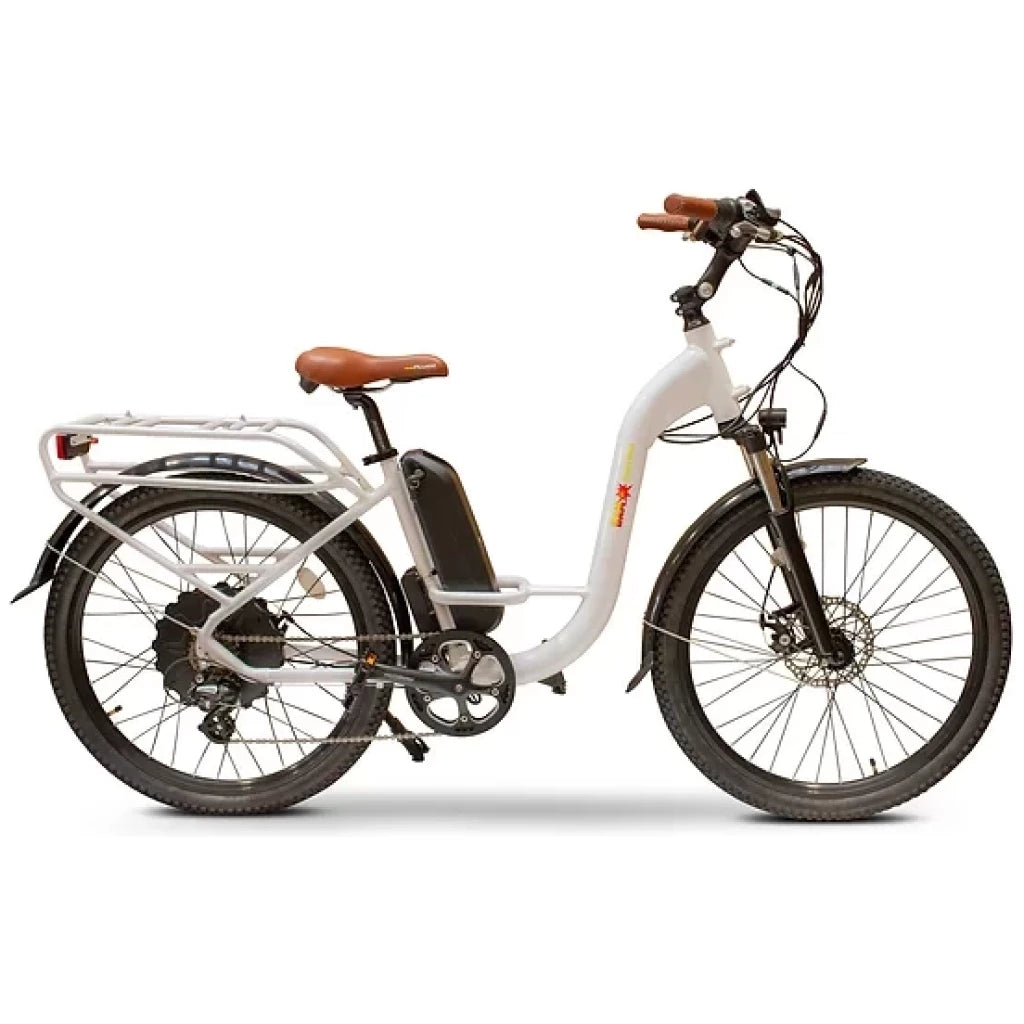

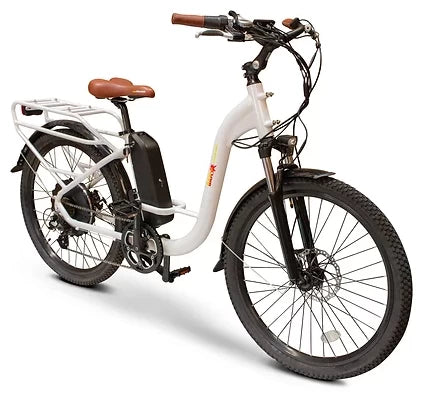

Step Thru Comfort High Range Electric Bike
For the rider who wants easy access and ride-ability
A perfect reason to ditch the car and ride an e-bike for a healthy commute to work or to the store. The velo plush seat and relaxed riding position make it a super comfortable ride and the included rear rack makes it easy to attach panniers or baskets for carrying your load without stressing your back.
The Step Thru has a range of up to 45 miles that you can rely on high quality 14 amp hour Samsung Lithium Ion battery. A convenient back-lit LCD display keeps you informed on your speed, distance and battery life and can even charge your phone!
Specifications
- Low-Step Frame
- Front & Rear Fenders
- Front & Rear LED Lightsear Rack
- 25-45 Miles Per Charge
- 750 Watt Powerful Motor
- 48 Volt 14AH Lithium-Ion battery Samsung Cells
- Interactive Digital Display
- FRAME SIZE (INCHES): 14"
- TOTAL WEIGHT: 62 LBS
- MILES PER CHARGE: 25-45+ Miles
- MAX TORQUE: 40NM

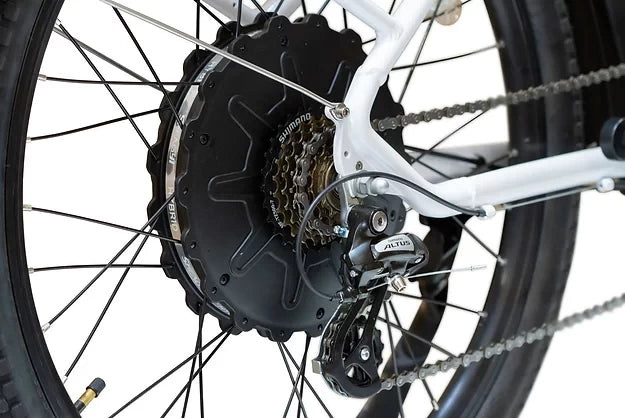

- MOTOR TYPE: Shengyi Hybrid Direct Drive Hub Motor
- MOTOR WATTAGE: 750 Watts
- BATTERY TYPE: Lithium Ion
- BATTERY VOLTAGE: 48 Volts
- BATTERY AH: 14AH
- BATTERY WEIGHT: 7.16 LBS
- CONTROLLER: 48 Volts, 750 Watts

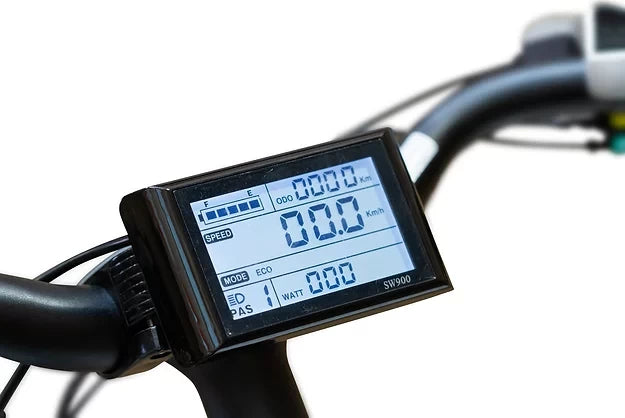

- DISPLAY TYPE: LCD Display
- TRIP ODOMETER: Yes
- ODOMETER: Yes
- SPEEDOMETER: Yes
- WATTMETER: Yes

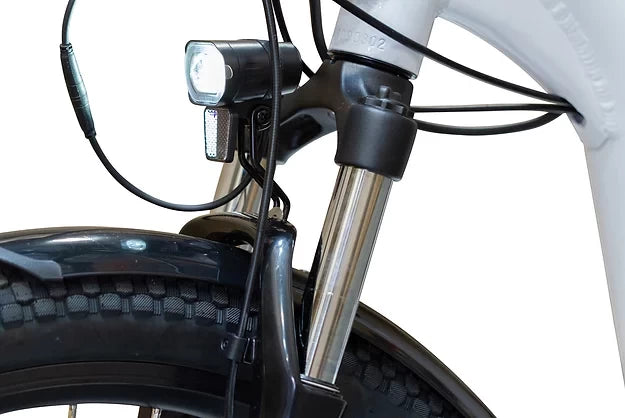

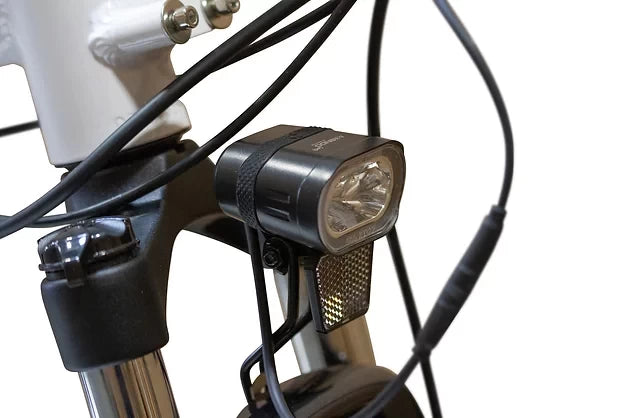

- FRONT LIGHT TYPE: Integrated LED Headlight

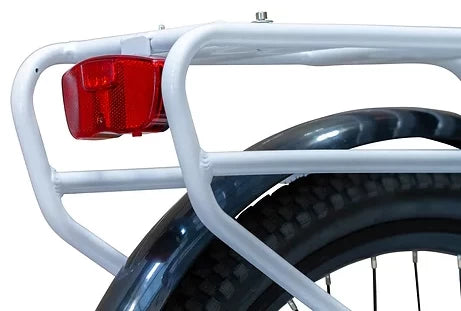

- BACK LIGHT TYPE: Battery Operated LED Running Light
- PEDAL ASSIST TYPE: Intelligent 5 Level Pedal Assist with 12 Magnet Cadence Sensor
- THROTTLE TYPE: Twist Throttle with On/Off Button
- WIRING TYPE: N/A
- USB CHARGING: Yes

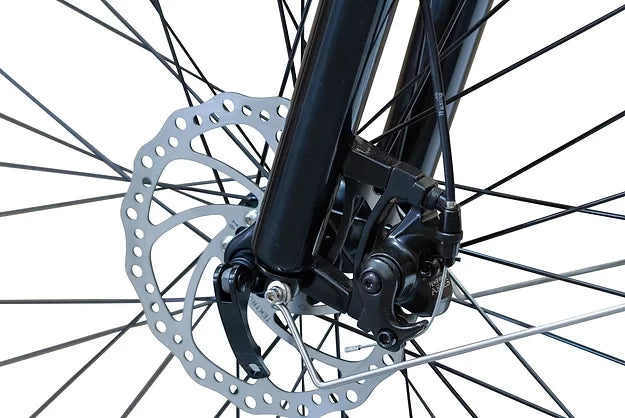

- FRONT BRAKE TYPE: Disc Brake

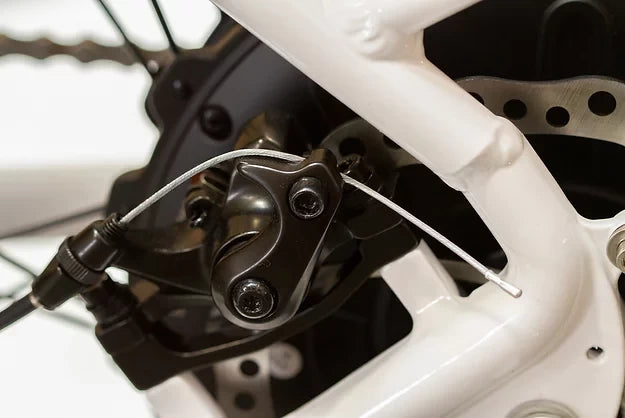

- BACK BRAKE TYPE: Disc Brake
- CHARGING TIE: 5-6 Hours
BIKE FEATURES
- BRAKE CALIPERS: Tektro Aries Calipers

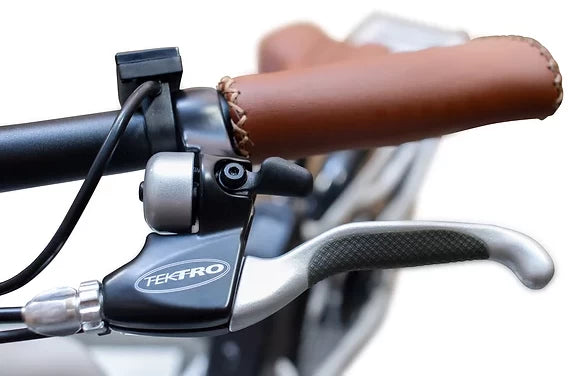

- BRAKE LEVERS: Tektro Brake Handles
- BRAKE PAD MATERIAL: Sintered Metal
- BRAKE ROTORS: Tektro 8I Rotors
- CHAIN: KMC Z Chain
- CRANK SET: 48T, 170mm ProWheel Ounce, Dual-Sided Aluminum Bashguard
- DERAILLEUR: Shimano Atlas Derailleur
- FENDERS: Yes (Front & Back)
- FORK: Front Suspension Fork

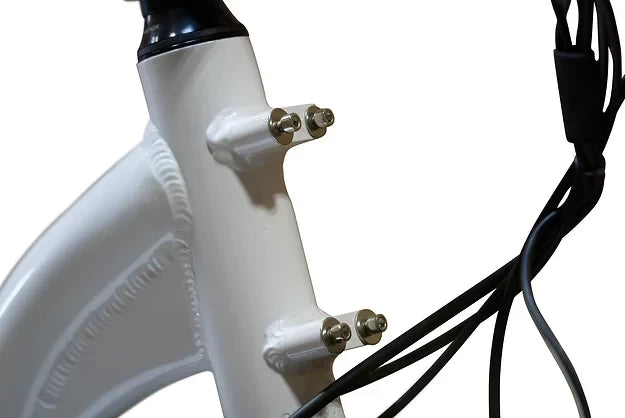

- FRAME TYPE: 6061 Aluminum
- FREEWHEEL: DNP 7-Speed Freewheel, 11-34T
- GEARING: 1 x 7-Speed
- GRIPS: Durable Imitation Leather Ergonomic Grips
- HANDLEBARS: Custom Forged Aluminum
- HEADSET: Semi-Integrated, 1-1/8" Straight Steerer Tube
- KICKSTAND: Heavy Duty Aluminum with Wide Plastic Foot
- PEDALS: Wellgo VB087 Pedals with Reflectors
- RACKS: Rear Integrated, 60 LBS Capacity / Front Optional
- WHEELS (RIMS): Weinmann Goliath, Allot, Double Wall, 36H

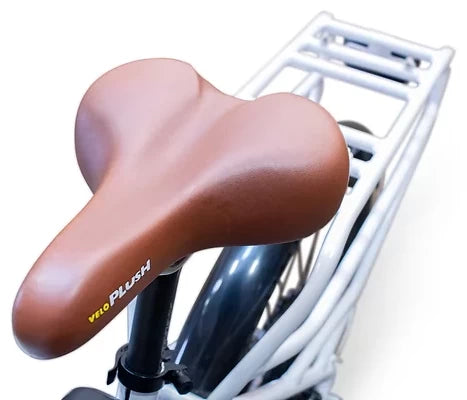

- SADDLE (SEAT): Velo Plush with Lifting Handle
- SEAT POST: Promax, 350mm x 27.2mm
- SEAT POST CLAMP: Quick Release
- SHIFTER: Shimano 7 Speed Thumb Shifter
- SPOKES: 12 Gauge, Stainless Steel
- STEM: Zoom, 60 Degree Angle Adjustment, 100mm Length, 88mm Height Adjustment

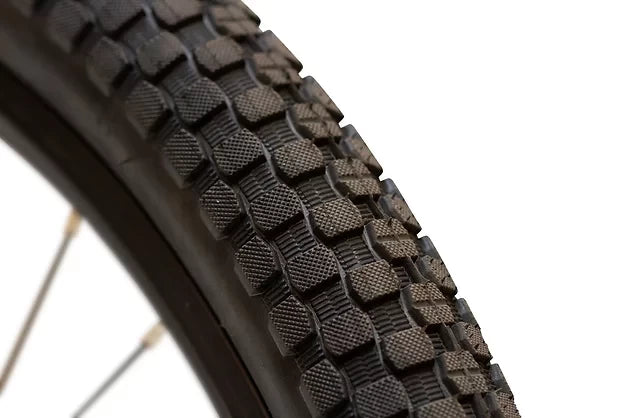

- TIRES: Kenda Tires
- FRONT SUSPENSION: Front Fork Suspension
- REAR SUSPENSION: N/A
- WHEEL REFLECTORS: Yes
- BELL: Yes
- INTEGRATED REAR RACK: Yes
- BRAKE HANDLE SENSORS: Yes (Left & Right)
MEASUREMENTS
- ASSEMBLED TOTAL LENGTH: 73"
- ASSEMBLED TOTAL WIDTH: 26"
- ASSEMBLED TOTAL HEIGHT LOWEST: 43"
- ASSEMBLED TOTAL HEIGHT HIGHEST: 45.5"
- PACKAGE TOTAL LENGTH: 65"
- PACKAGE TOTAL WIDTH: 13"
- PACKAGE TOTAL HEIGHT: 35"
- WHEELBASE: 45"
- STAND OVER HEIGHT: 18"
- HANDLEBAR REACH: 13.5"
- MINIMUM SEAT HEIGHT: 33.5"
- MAXIMUM SEAT HEIGHT: 40"
- SEAT ADJUSTMENT RANGE: 6.5"
- MINIMUM HANDLEBAR HEIGHT: 43"
- MAXIMUM HANDLEBAR HEIGHT: 45.5"
- HANDLEBAR ADJUSTMENT RANGE: 2.5"
- SEAT TUBE: 15"
- SEAT POST DIAMETER: 27.2mm (1.07")
- CRANK SET DIAMETER: 170mm (6.69")
- DISK BRAKE ROTOR SIZE: 180mm (7.08")
- TIRED WIDTH: 2.3"
- TIRE DIAMETER: 26"
- WHEEL WIDTH: 1.5"
- WHEEL DIAMETER: 22"
EW-Step Thru Specificatons Doc (Click here to download)
Electric bikes are gaining momentum in popularity
That’s why many are trading in their commuter bicycles for electric bikes (e-bikes).
E-bikes are like a regular bicycles but is equipped with an electric motor that can make obstacles like steep hills much more manageable. Ride it like a regular bicycle but get the benefits of added assistance.
E-bikes makes cycling much more accessible, and it's making cycling easier for the elder generation and for those with disabilities.
With an electric motor to assist when endurance needs to kick in. An e-bike can help keep you fit and assist in extending the length of a ride without giving you exhaustion.
Which helps with your cardio, heart, blood pressure, and lungs. With regular use, riding an e-bike can help reduce stress levels.
Available to ship to USA and Canada.
The below rates exclude NY, NJ, CT, RI, VT, NH, ME, MA, PA, Hawaii, Alaska, Canada, and Florida Keys, or Any Islands. Please contact us for shipping prices to these locations.
$265 Standard Ground Shipping, (3-5 business days).
Business days are Monday- Friday, excluding federal holidays within the United States.
P.O. Boxes: We cannot ship to P.O. Boxes Military APO / FPO Addresses: We cannot ship to APO / FPO Addresses
Recreational scooters will ship out between 10-14 business days and medical scooters will ship 2-3 business days.
The delivery company will contact you by phone to schedule a delivery date and time window. Typically, there will be a minimum of a four-hour timeframe for the delivery and an adult must be available to accept, inspect, and sign-for the delivery.
The item will be delivered to your designated shipping address. The freight delivery company is not responsible for unloading the item from the truck or carrying the item into the building.
Your package is likely to be heavy and large; therefore, we recommend that you have someone with you to help unload the item from the truck. The total charge does not include inside delivery, removal of cartons, or assembly.
Warranty
5 Year Limited Warranty
Limited Warranty
ELECTRIC WHEELS products are warranted to the original retail purchaser, when purchased directly from an authorized ELECTRIC WHEELS reseller, to be complete and free from defects in materials and workmanship in the frame and components, except for tires and inner tubes and batteries, for a period of:
- All electric scooters: 30 days from the date of purchase
- EWHEELS branded electric bicycles and Mobility scooters : 90 days from the date of purchase
