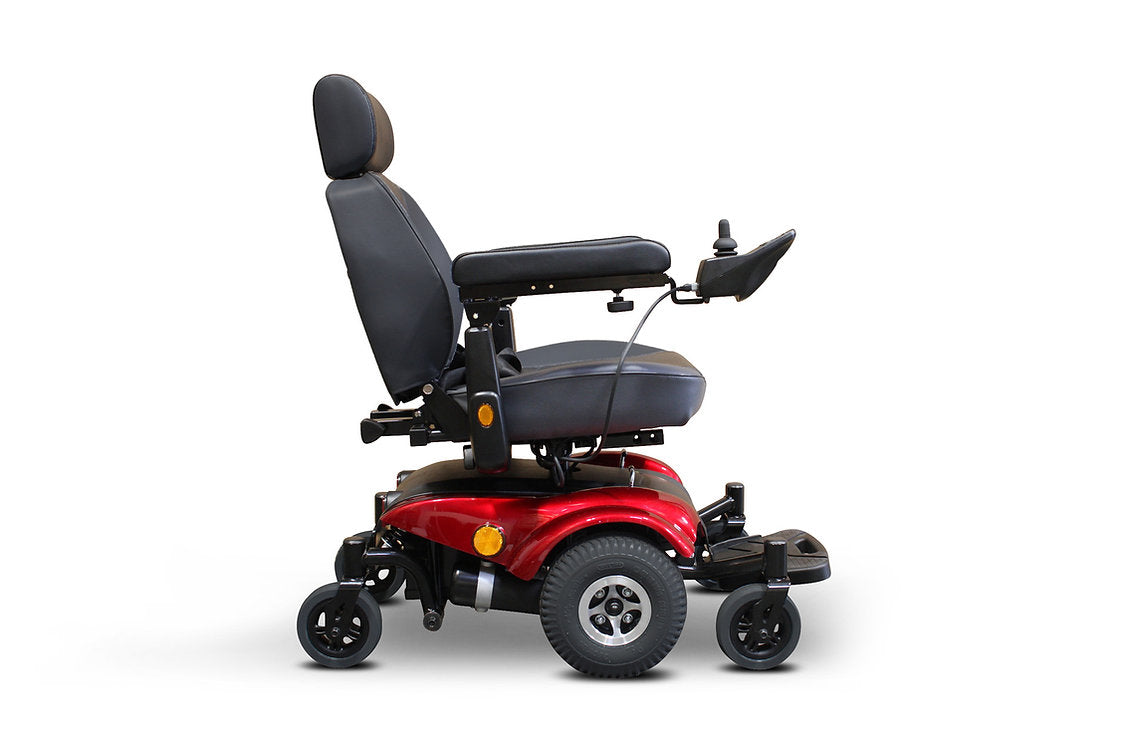

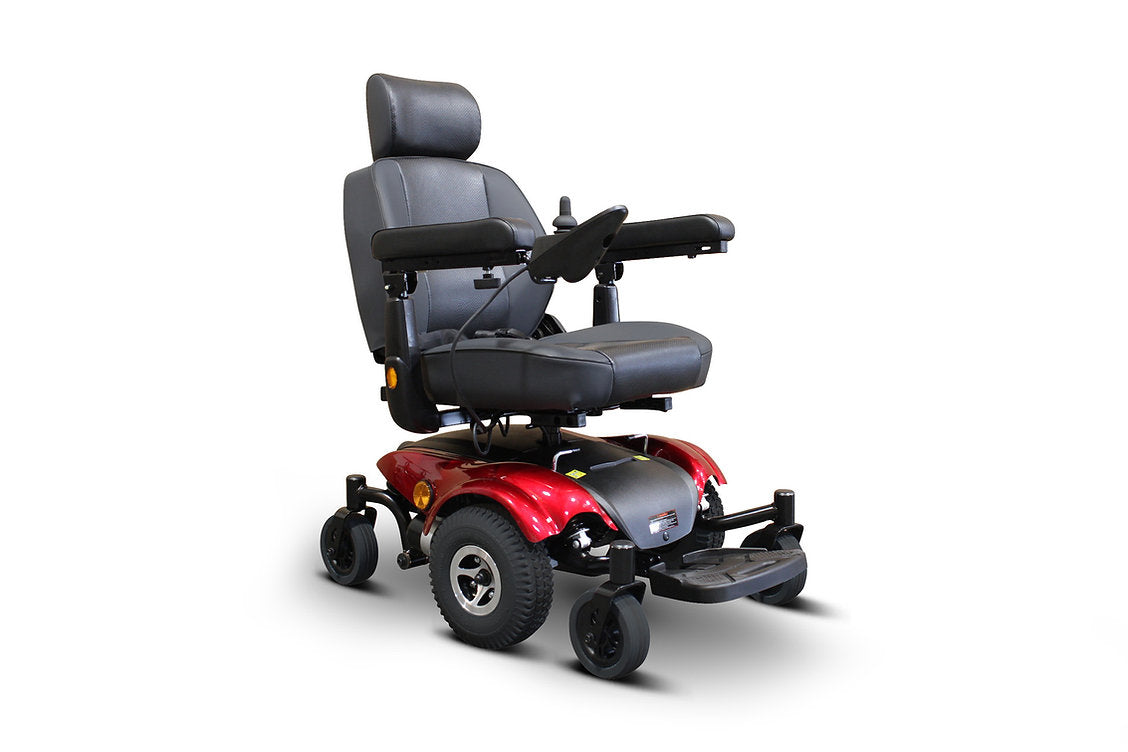

Deluxe Comfort Stylish Power Wheelchair Adjustable 20" Seat
The ultimate power wheelchair has comfort and styling

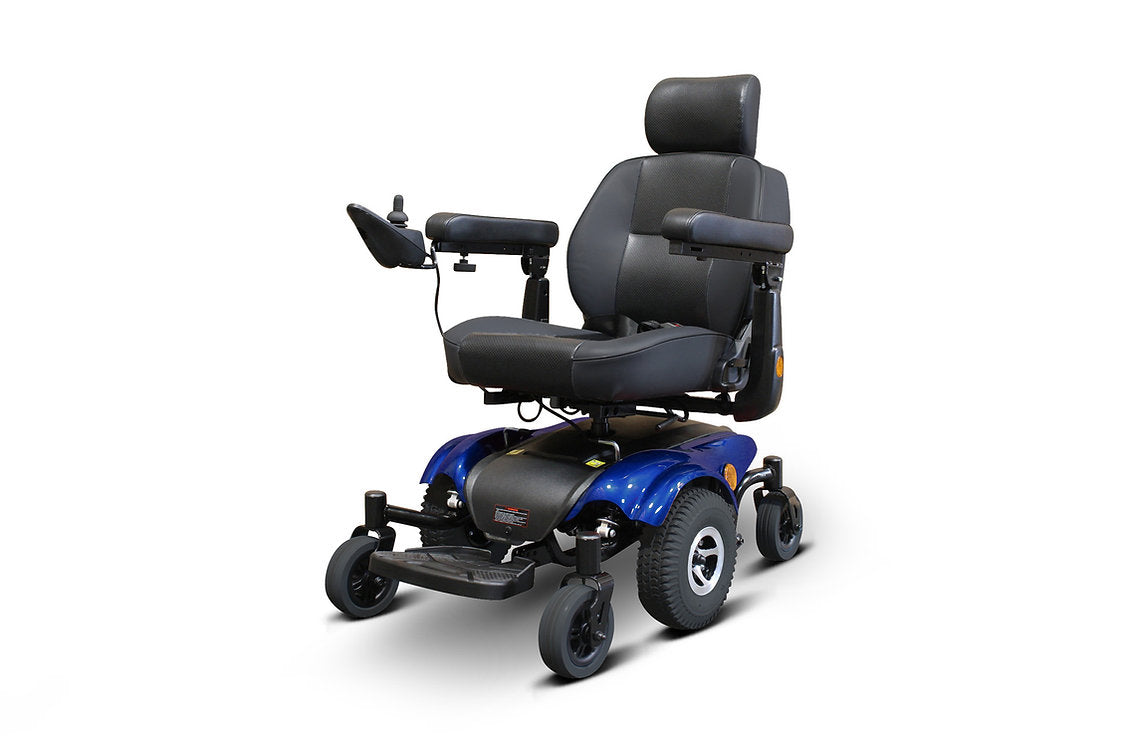

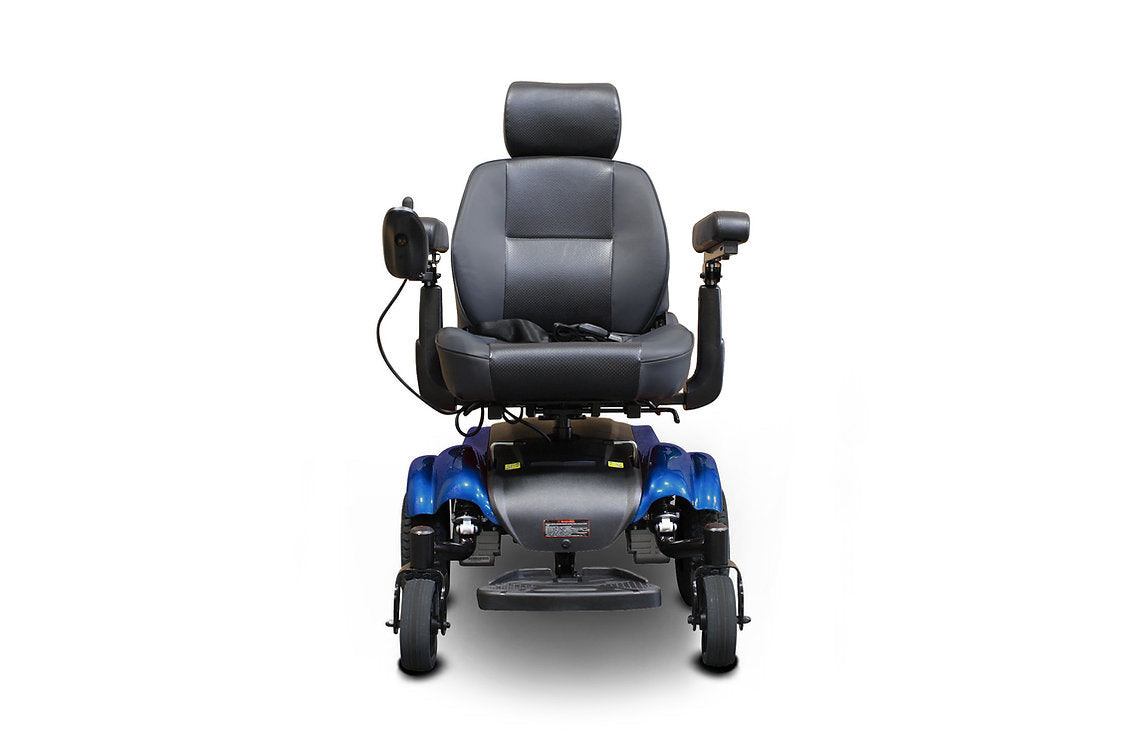

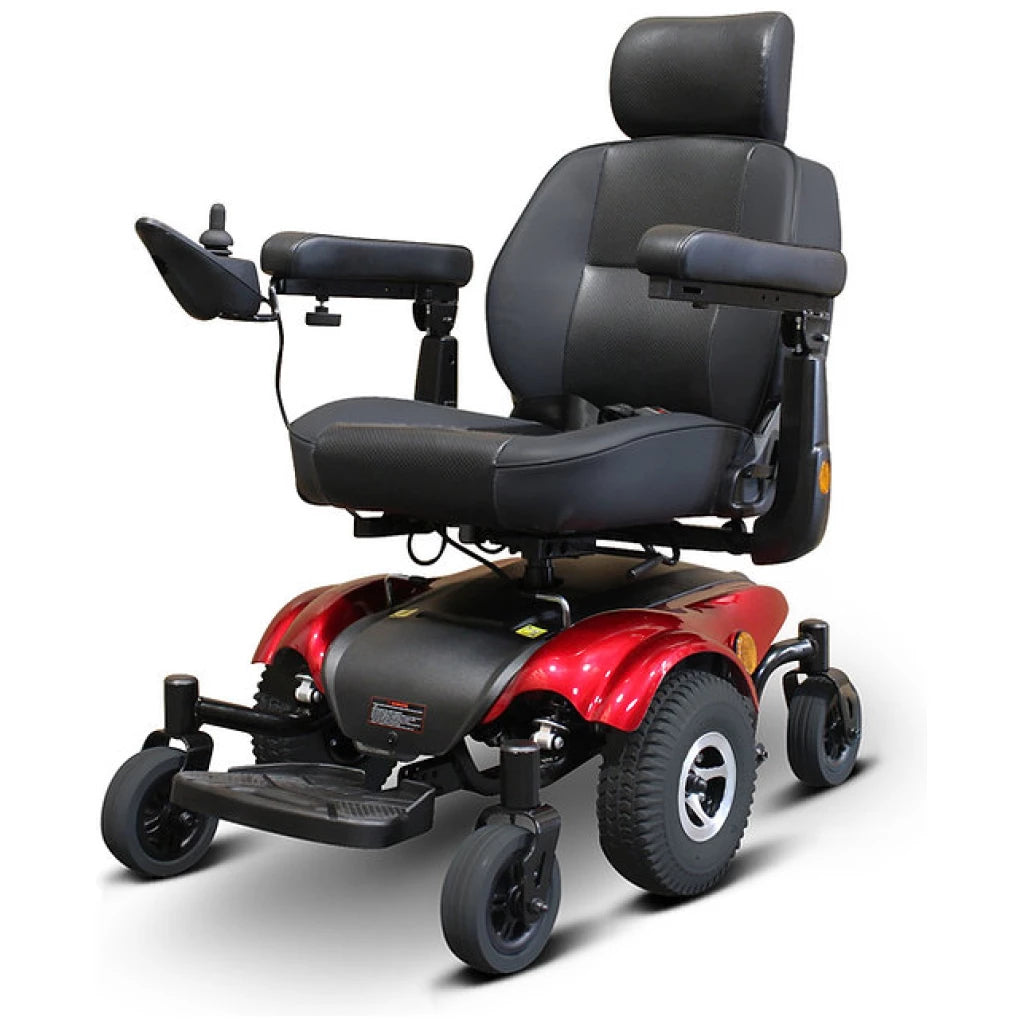

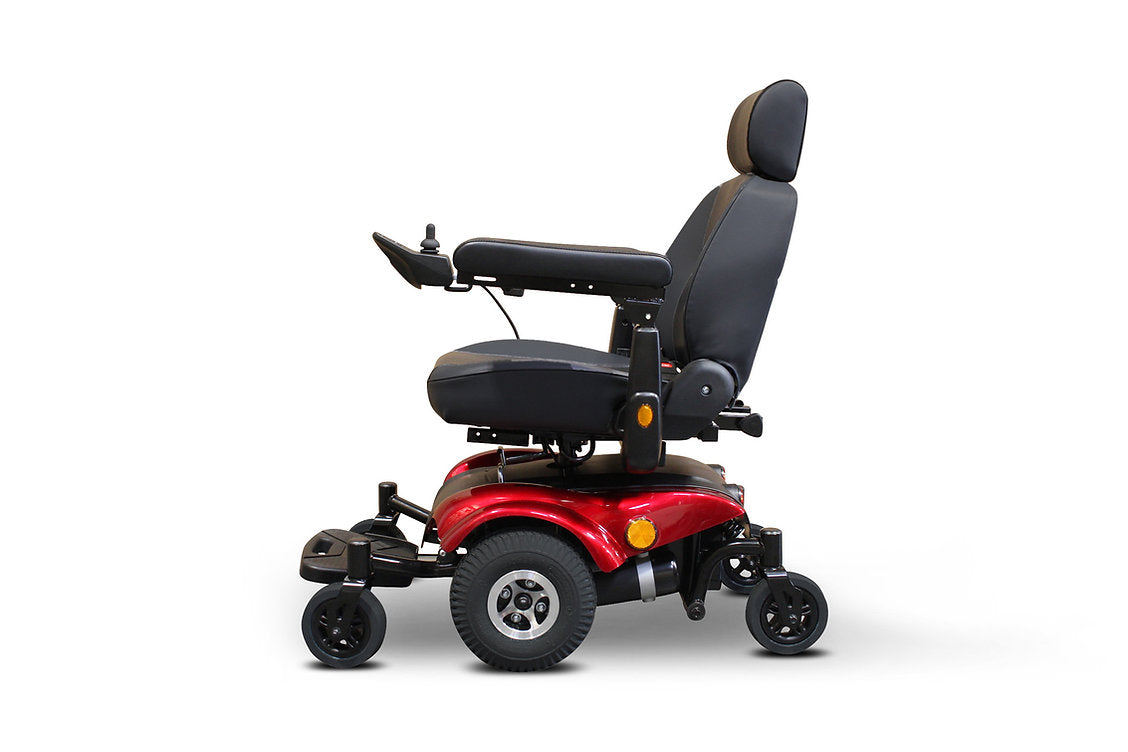

The EW-M48 is equipped with a standard deluxe 20” captains seat which features an adjustable angle backrest, flip-up armrest and a swivel seat. The EW-M48 uses a unique 10” front wheel set-up that positions the drive wheel forward at the user’s center of gravity, making it extremely stable and high performing on all types of surfaces.
Featuring a 300 pound weight capacity, 4.2 mile top speed, 24” turning radius and a battery charge distance of 14.2 miles, the EW-M48 makes handling daily mobility activities a breeze!
Specifications:
- Seat Width: 20” deluxe captain seat
- Ultra-Comfort Front, Rear & Center Suspension
- Top Speed: 4.2 mph
- Turning Radius: 24”
- Weight Capacity: 300 lbs.
- General Specifications:

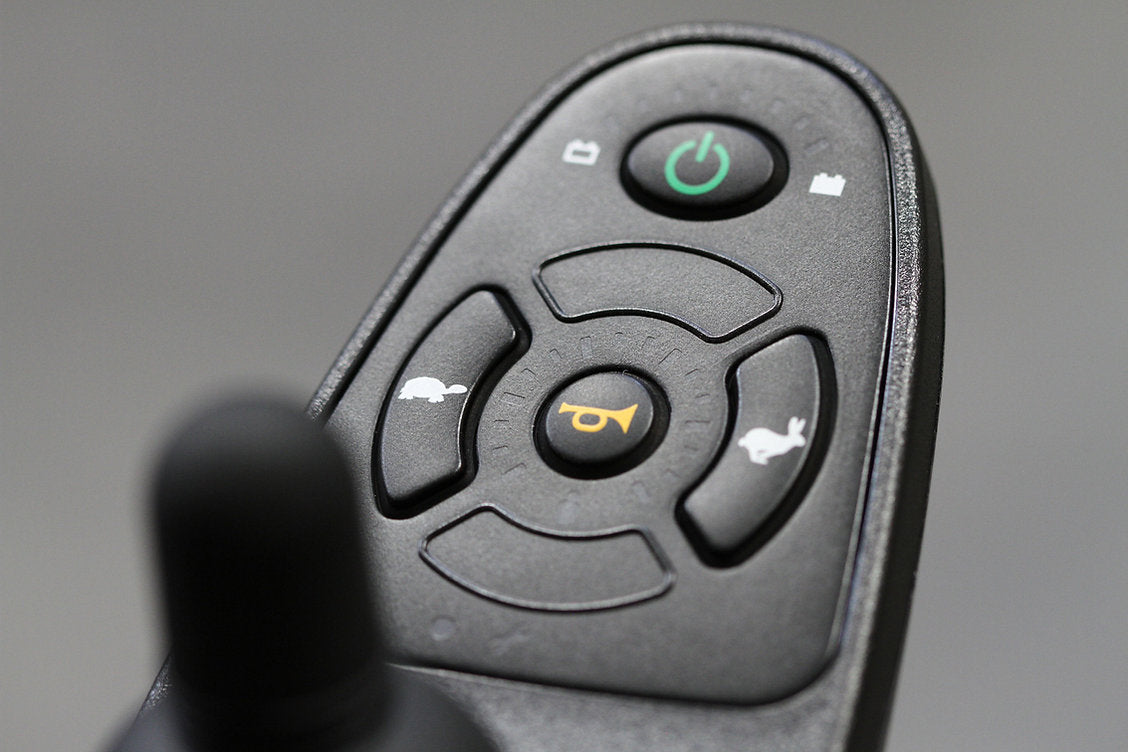

- Swing-Away joystick: Yes

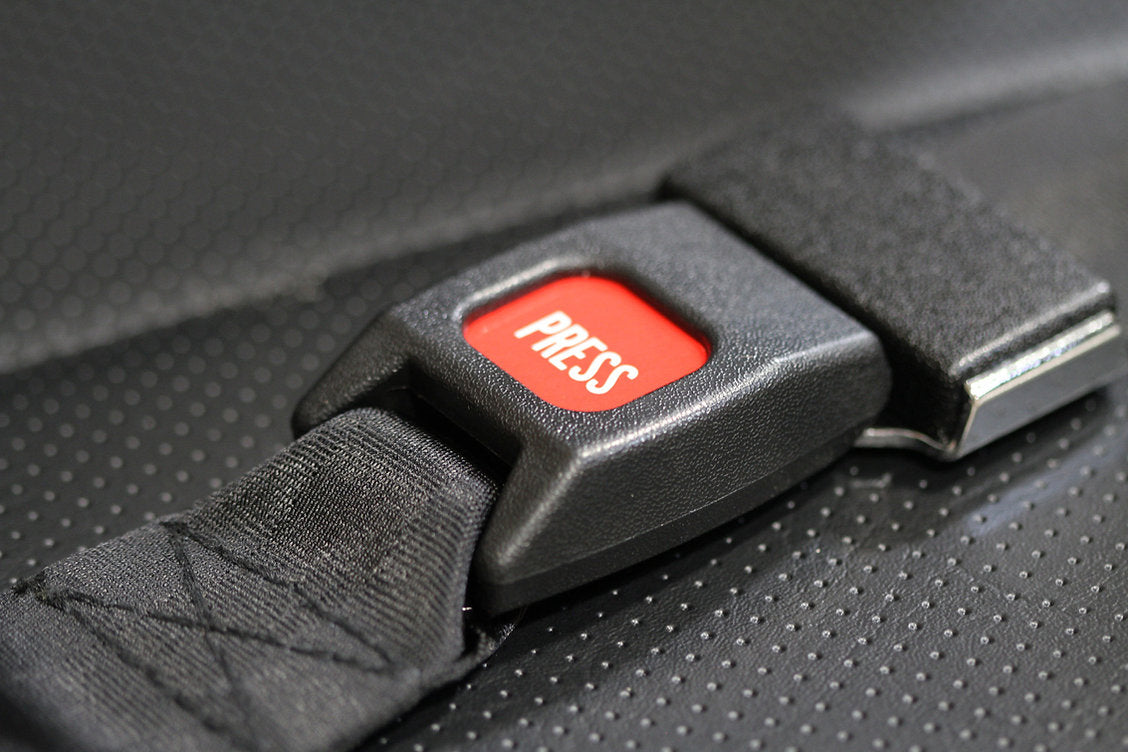

- Lap Belt: Yes
- Turning Radius: 24”
- Optional Left or Right Hand Joystick: Yes
- Brake: Electro-Mechanical
- Frame Material: Aluminum
- Top Speed: 4.2 mph
- Adjustable Variable Speed: Yes
- Self-Diagnostic Warning Lights: Yes
- Battery Charge Distance: 12.4 miles
- Drive Type: 2 Motor Mid-Wheel Drive
- Grade Climbable: 6 degree
- Foldable: Yes
- Footplate: Large Flip-up Footplate
- Adjustable Footplate: Yes, 3-Angle Adjustment
- Ground Clearance: 2.4”
- Seat Type: 20” Swivel Captain Seat with Adjustable Headrest & Seat Height
- Adjustable Armrest: Yes, Width and Height
- Removable Seat: Yes
- Seat Width: 20”
- Seat Depth: 19”
- Seat to Floor Height: 21”
- Overall Width: 24”
- Overall Length: 39”
- Overall Height: 42.5”
- Electric Horn: Yes
- Battery Gauge: Yes
- Free Wheel Levers: Yes
- Joystick Options: Right or Left
- Extendable Joystick Adjustment: Yes
- Frame Type: Aluminum
- Battery: (2) 12V 36AH
- Battery Included: Yes
- Battery Charger Type: Off Board 5A

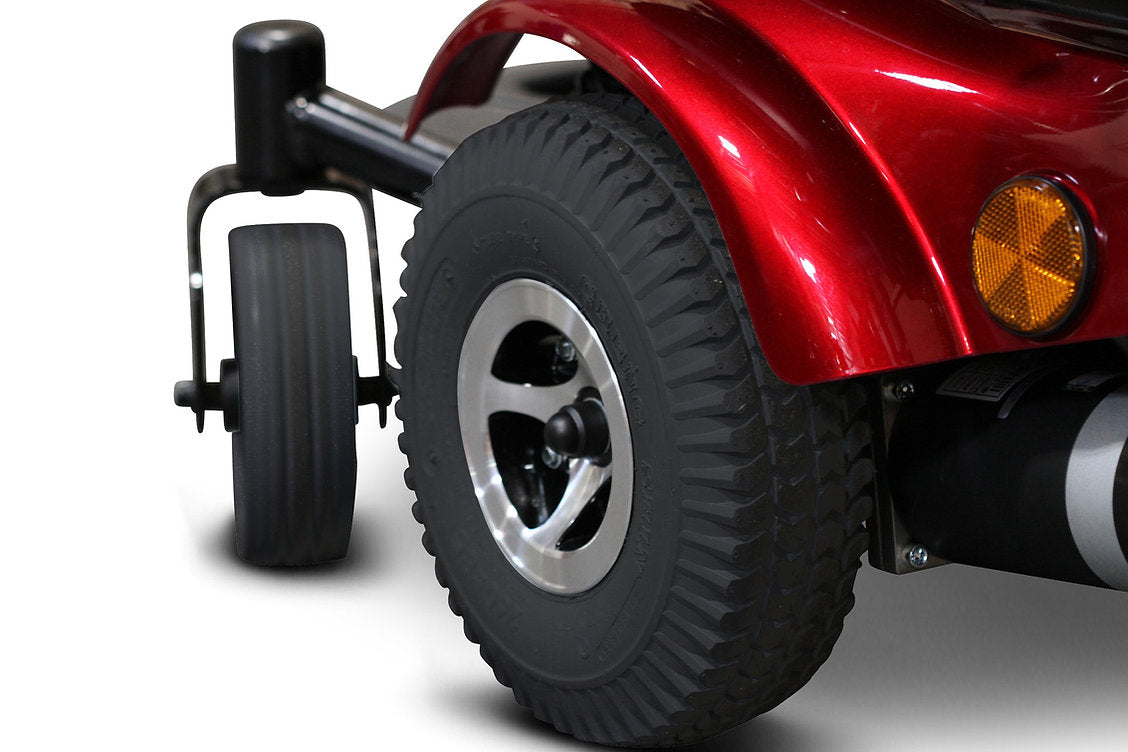

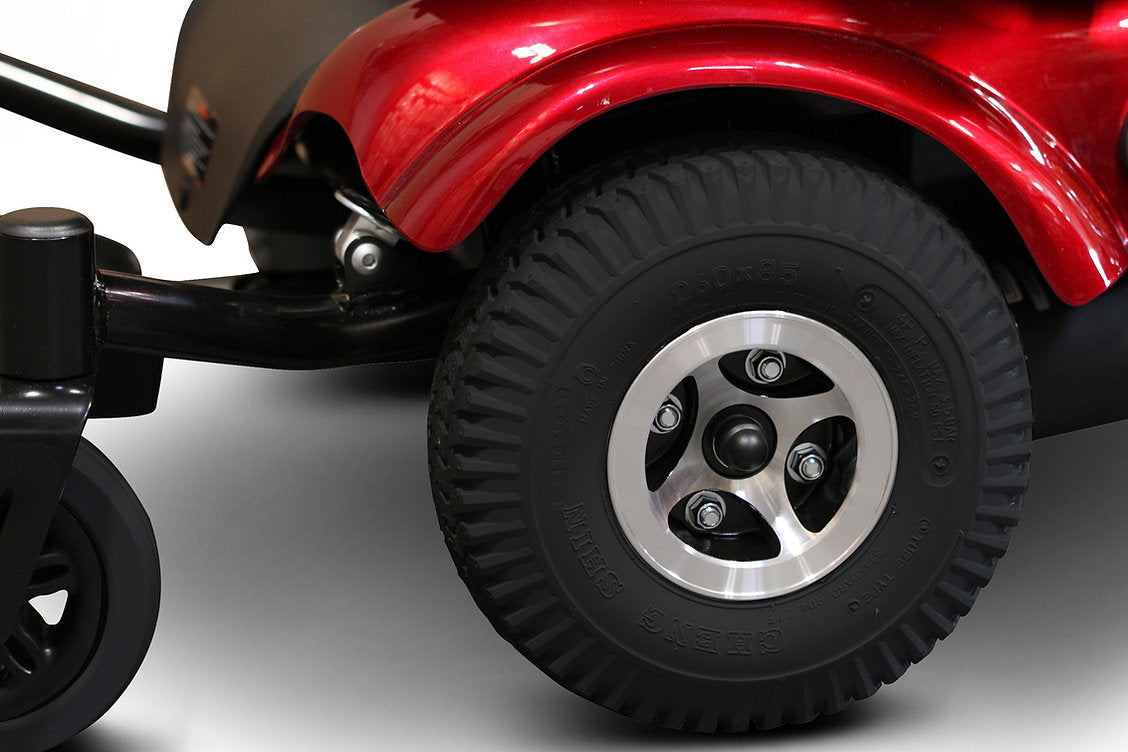

- Middle Wheels: 10”
- Rear Wheels Size: 6”

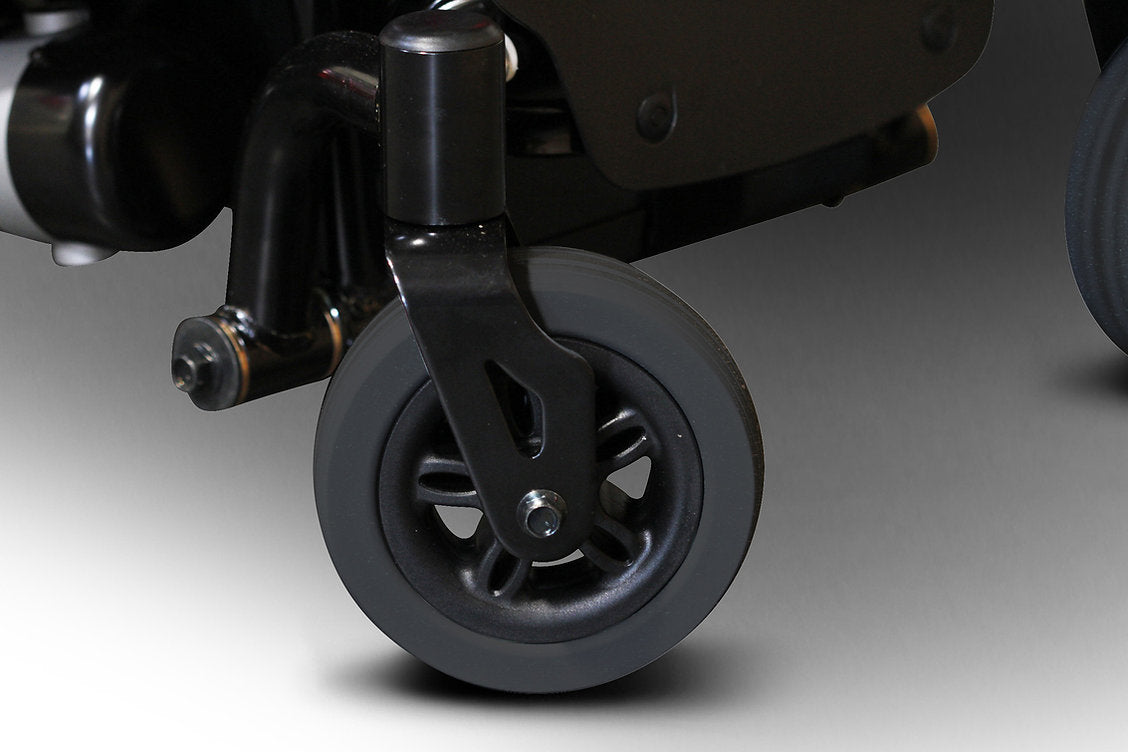

- Front Wheels Size: 6”
- Solid Flat Free Wheels: Yes
- Base Product Weight: 181 lbs.
- Battery Pack Weight: 49.6 lbs.
- Weight Without Batteries: 131.4 lbs.
- Anti-Tip Wheels: Yes

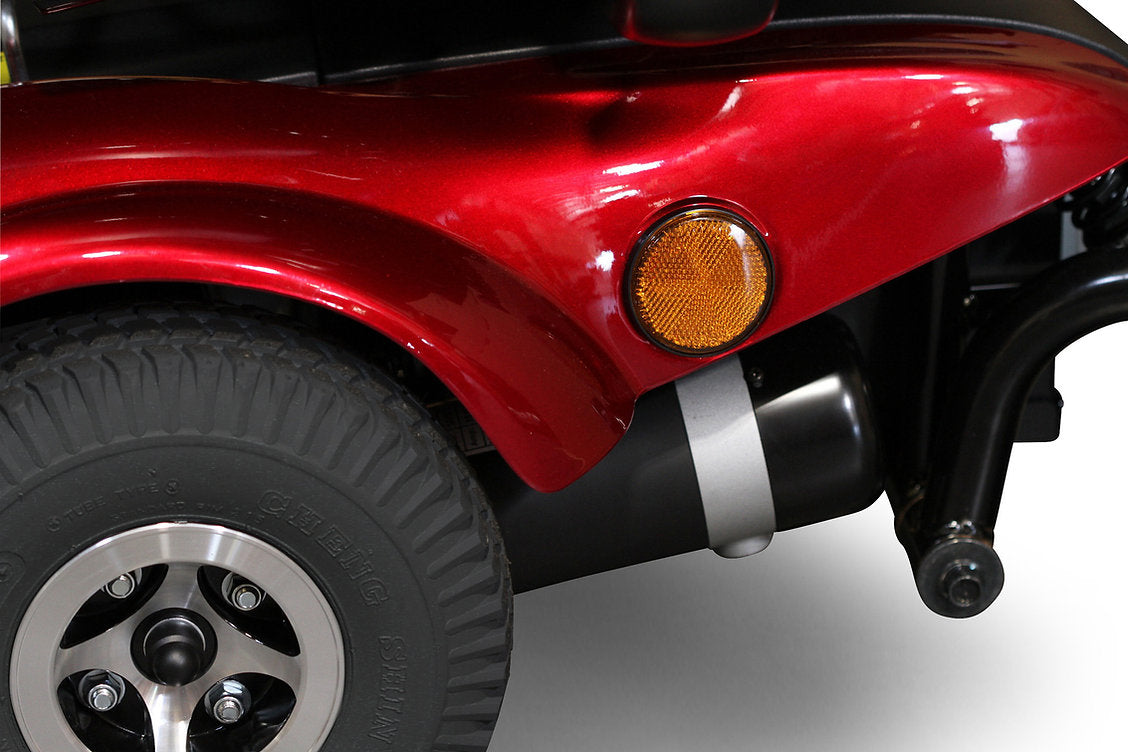

- Rear & Side ReNlectors: Yes
- Weight Capacity: 300 lbs.
EW-M48 Spec Sheet (click here to download PDF)
Increase Your Mobility
Having limited or decreased mobility can make life difficult, but it doesn’t have to be. This specialty mobility vehicle is designed with the user in mind.
Our power wheelchairs have superior acceleration, torque and handling characteristics.
The quality construction is top-rated and every vehicle is manufactured with the highest quality components.
Features US and International Patents to protect the unique electric systems. These systems are the backbone of the electric wheelchairs and scooters, powering these vehicles with efficient and environmentally friendly, high performance drive systems for recreational or medical use.
EW-M48 Manual
